N117/2400

THE N117/2400

BESTSELLER IN THE 2 MW+ Class

0105

At a glance

2.4 MW

BEST SELLING 2MW+ TURBINE

ACHIEVES OVER 3,500 FULL-LOAD HOURS

IEC III

TOP YIELDS FOR LOW WIND SITES

EFFICIENCY IN THE 2MW CLASS

102.0 dB(A)

CLOSER TO RESIDENTIAL AREAS

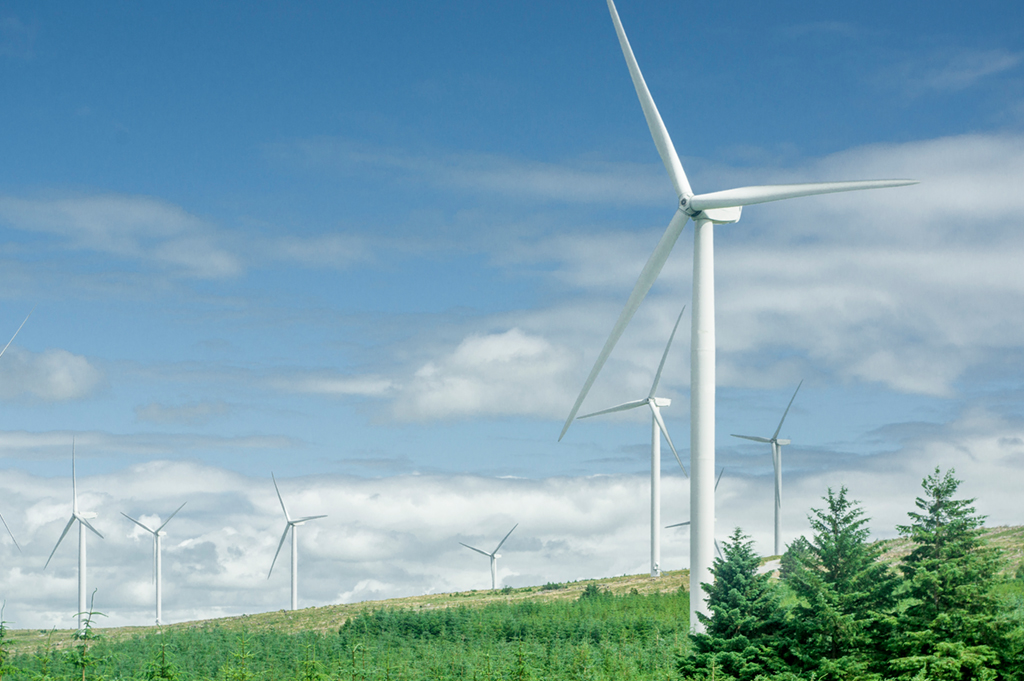

OPTIMUM PLACEMENT IN EACH WIND FARM

0205

Light wind, strong yields

To make IEC III locations economically viable, project operators need a turbine that can exploit even light winds to maximum effect. With a rotor sweep of 10,715 square meters, the N117/2400 is extremely efficient. And with a capacity factor of 40 percent, the N117/2400 is a very profitable solution for light-wind locations.

0305

Technical Data

Operating data

Rated power

2.4 MW

Cut-in wind speed

3 m/s

Cut-out wind speed

20 m/s

Rotor

Diameter

116.8 m

Swept area

10,715 m²

Operating range rotational speed

7.5–13.2 rpm

Rated rotational speed

11.8 rpm

Tip speed

72 m / s

Gearbox

Type

3-stage gearbox (planetary-planetary-spur gear) or 4-stage gearbox (planetary-planetary-differential-spur gear)

Generator

Construction

Doubly-fed asynchronous generator

Cooling system

Liquid / air cooling

Voltage

660 V

Grid frequency

50 / 60 Hz

Brake system

Main brake

Aerodynamic brake (pitch)

Holding brake

Disc brake

Hub height

Hub height

91 m, 98 m, 120 m, 141 m

0405

GENERATION GAMMA

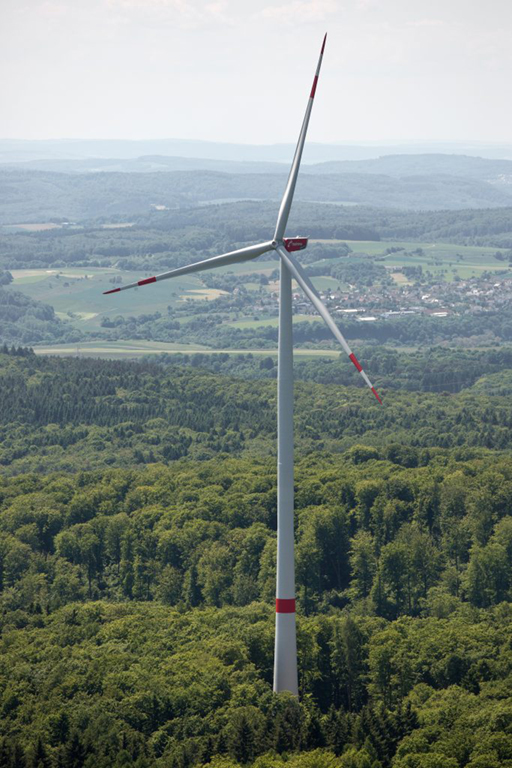

The N117/2400 of the Gamma Generation combines modern turbine technology with know-how and experience from two decades of operation to meet the requirements of the market. In 2000, Nordex installed the first 2.5 MW series turbine in the world.
With a rotor sweep of 10,715 square meters, the N117/2400 is extremely efficient. The maximum acoustic power level is 102 decibels (with serrations), which means the machine can be installed nearer to residential areas and that a wind farm can be optimally laid out in the available space. With a capacity factor of 40 percent, the N117/2400 is one of the most profitable solutions for low-wind locations.

1. PROVEN TECHNOLOGY
2. TOP YIELDS
3. MINIMAL SOUND
4. ECONOMIC EFFICIENCY
5. LARGE ROTOR
